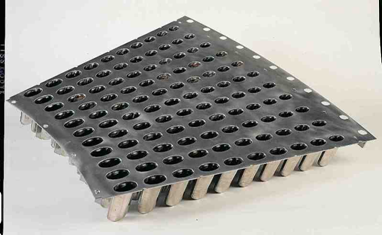

WIDE UP TO 32 WIDE MOLD STRIPS :

- Mold strips complete with standard interlocking splash guard or patent pending chevron style.

- Mold cups are made of 316L stainless steel, and are precision welded into a 316L stainless steel carrier strip for durable, sanitary construction.


- Guaranteed constant thickness throughout entire mold cup regardless of complexity.


- Highly polished smooth finish.


- Excellent heat transfer capability.


- Extremely durable construction.

- Mold cups are stamped using a proprietary process; no annealing or chemical treatment is needed.

- The mold cup thickness is guaranteed throughout the entire cup.

- The mold cup has a smooth surface with no tool marks.


- The mold cup volumes are calculated using computer design for accuracy.

- The mold cups are assembled using a computerized robotic welding, and mounted into precision sized,laser        cut positioning holes.


- Completed molds are electro-polished.


- Over 1000 shapes and sizes to choose from.

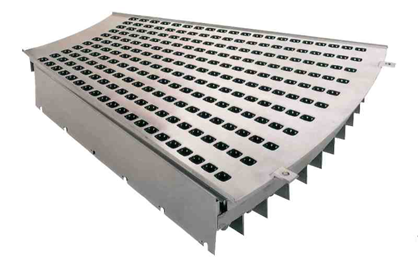

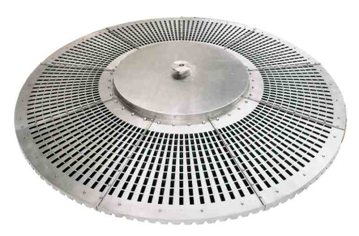

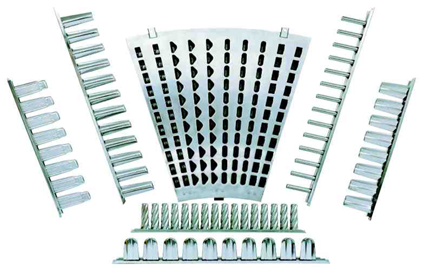

ROTARY MACHINE MOLDS :

Rotary mold Cups are manufactured using 254SMO stainless steel offering extremely high resistance to pitting and crevice corrosion compared to standard 304 or 316L stainless steel. (A complete te- chnical description of 254SMO stainless steel is available upon request.).


- Mold cups are attached to a 254SMO stainless steel, 3 mm thick carrier segment using a sanitary TIG welding process.

- Completed mold segments are positioned, as they would be on the Rotary Bar Freezer, and quality checked to ensure perfect sealing between segment joints, flatness, sanitary finish, and they are dye leak checked to ensure the highest degree of quality.

- Quality control test certificates, are available upon request and include; volume control, test cer- tificate from Outokumpo, test certificate of chemical and physical analysis, dimensional tolerance, and leak test data sheets.

- Inline Mold Cups do not require the same corrosion resistance and are made using 316L stainless steel which are TIG welded into 316L stainless steel mold strips.

- Mold strips have a “splash guard” feature to prevent brine from entering the mold cups.

- 3 Years warranty on our molds. Within the first two years from the date of shipment, if the molds need repair for any reason, other than misuse or neglect of the molds, we will repair on replace (at our discretion) the mold cups or segments at our expense. Should the molds experience problems within 3 years from the date of shipment, again excluding problems resulting from misuse or neglect, the molds will be repaired at a reduced cost to the user, the cost will be calculated on a prorated time/use/cost basis.

- Single piece molds offered by some Original Equipment (OEM) suppliers must go through numerous drawing and annealing processes. During each stage of drawing and annealing, the Outokumpo ma- terial can lose its original composition. This is obvious by the presence of tool marks which are visible on the surface of drawn mold cups, and test certification will show that the annealing process alters the original Outokumpo properties.

- Our mold cups are made using a single stamping process. They are not annealed or chemically treated. As a result our mold cups have a smooth finish, free from tool marks, and they retain all of the original 254SMO material properties.

- Guaranteed constant thickness throughout the mold cup due to our mold stamping process. Mold thickness is guaranteed even on complicated, compound surface mold shapes, unlike the OEM molds which have thinner areas at the nose and on any ridges and corners in the mold cup.

Better prices, without sacrificing quality or delivery, due to our unique manufacturing process.
